Tin can blower

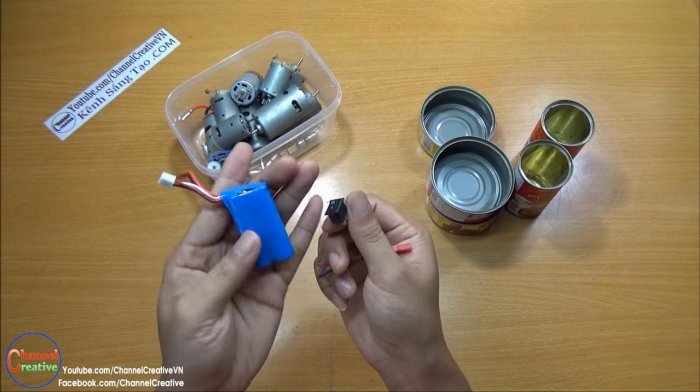

Necessary resources to build a miracle blower

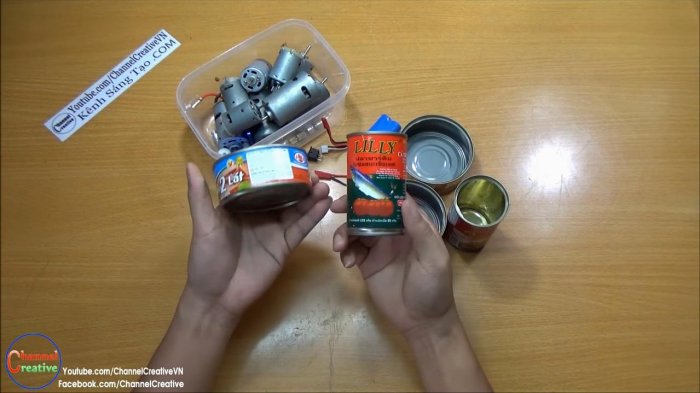

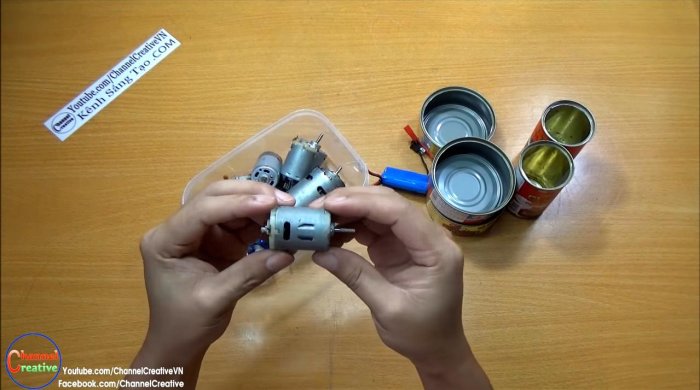

Materials:

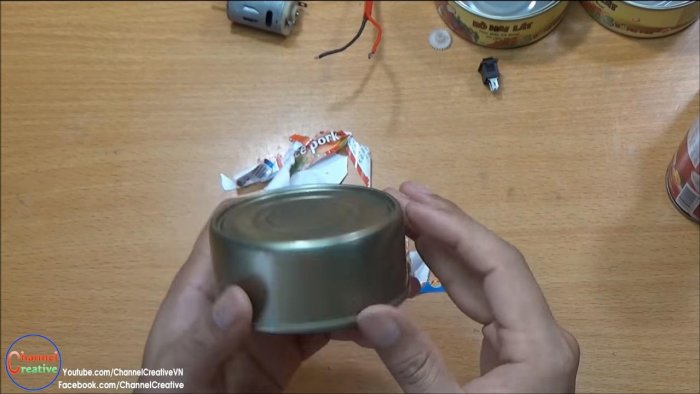

  • Five tin cans - three flat, two tall;
  • Motor, type 775;
  • Two lithium polymer or similar batteries with a contact group;
  • Button-switch with wires;
  • Several plastic gears for the size of the motor shaft.

Tin can blower

Tin can blower

Tin can blower

Tin can blower

Instruments:
  • Screwdriver;
  • A set of conventional and pen drills;
  • Scissors for metal;
  • Ordinary scissors;
  • Soldering iron with flux and solder;
  • Impeller with abrasive and cutting disc for metal;
  • Glue gun;
  • Adapter for charging batteries.
  • Screwdriver, pliers, knife.

We collect the blower with our own hands


Stage one - we make the case with the guide tube

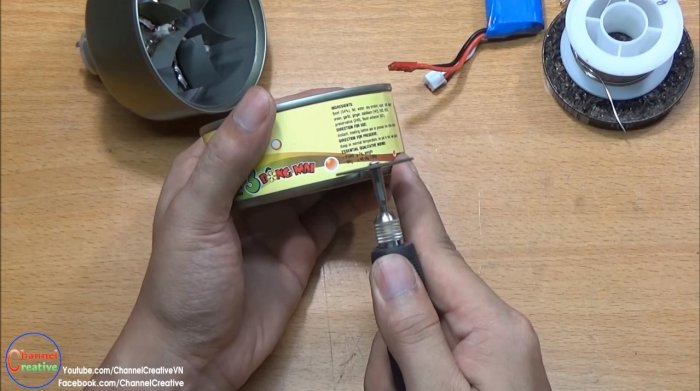

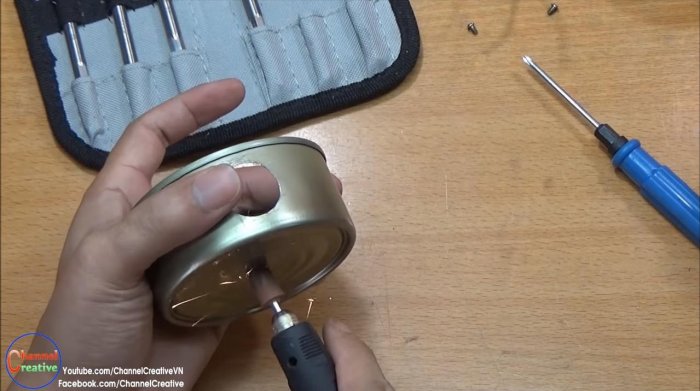

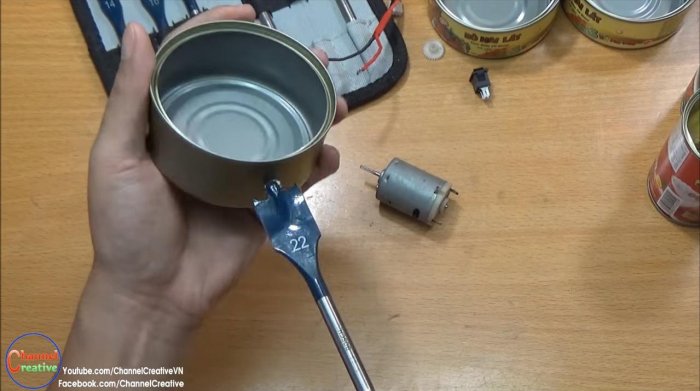

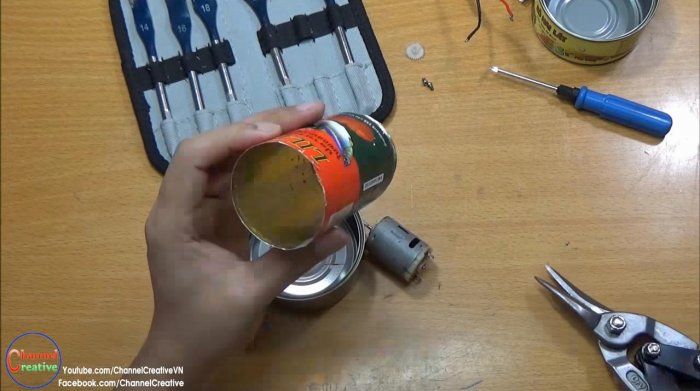

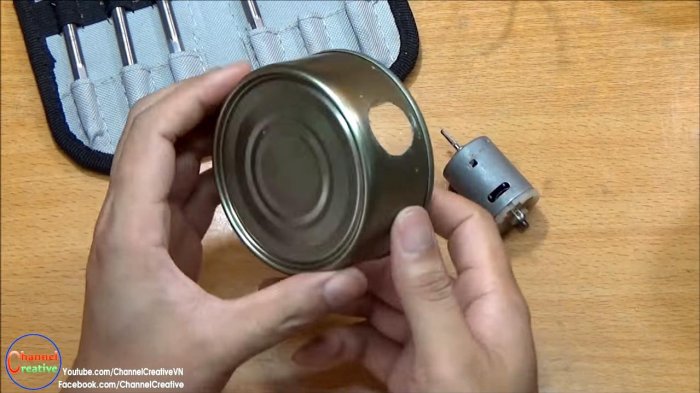

To begin with, we take a wide tin can, and make a hole in it with a screwdriver on the side with a feather drill with a diameter of 20-22 mm.
Tin can blower

Tin can blower

Tin can blower

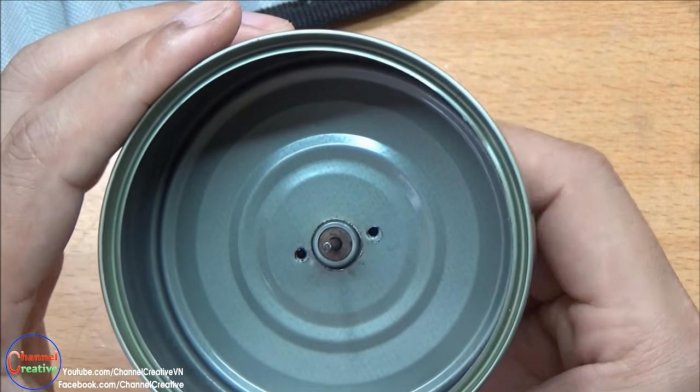

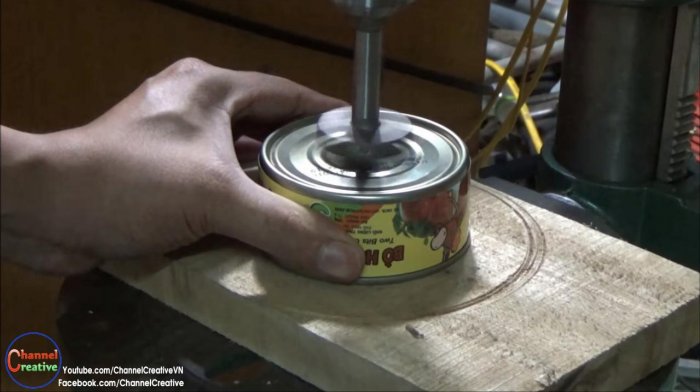

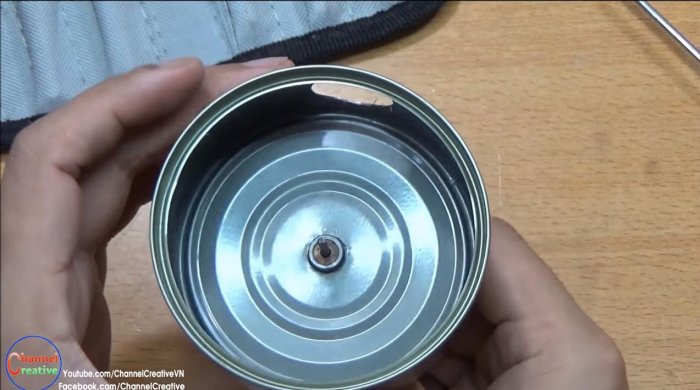

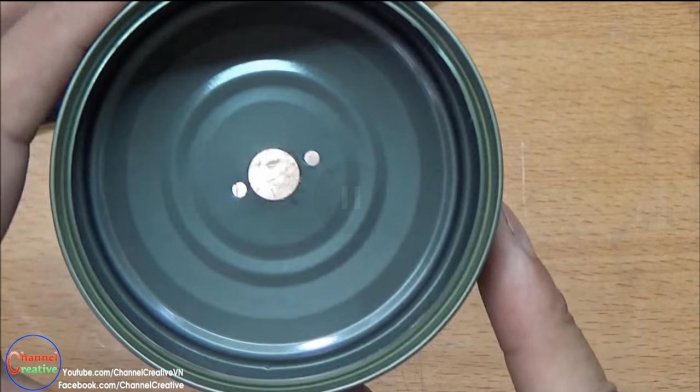

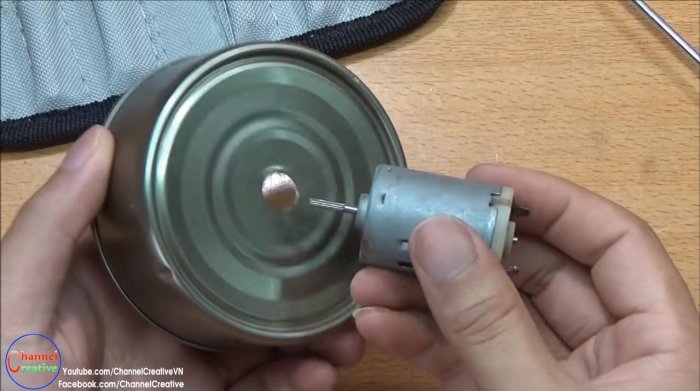

In the bottom of the same jar we make a small hole under the motor shaft. This can be done with an ordinary drill or by using an impeller (there will be less burrs). Having tried on the engine in place, we note two side holes for mounting bolts for it. Hardware is small, so do the holes for them with a drill 2.5-3 mm.
Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

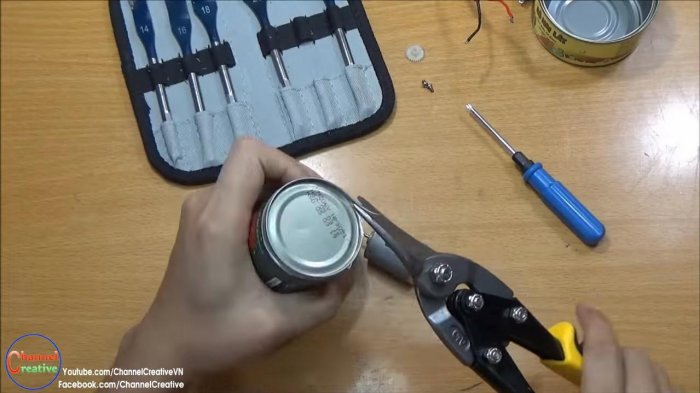

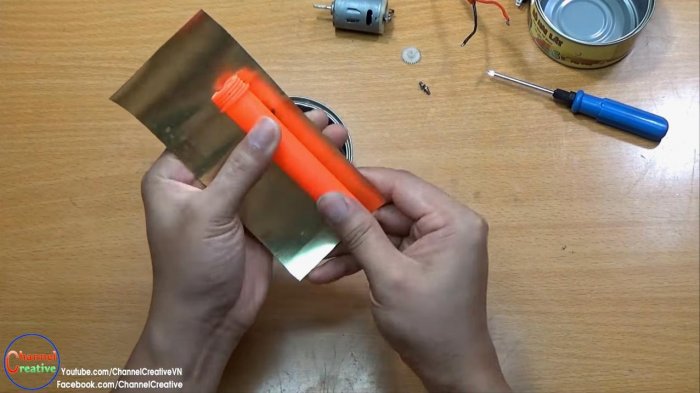

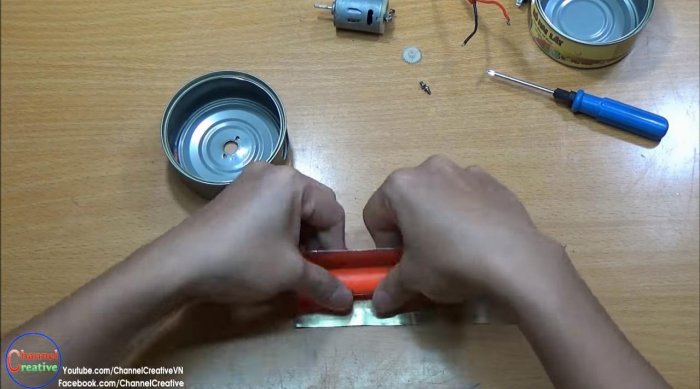

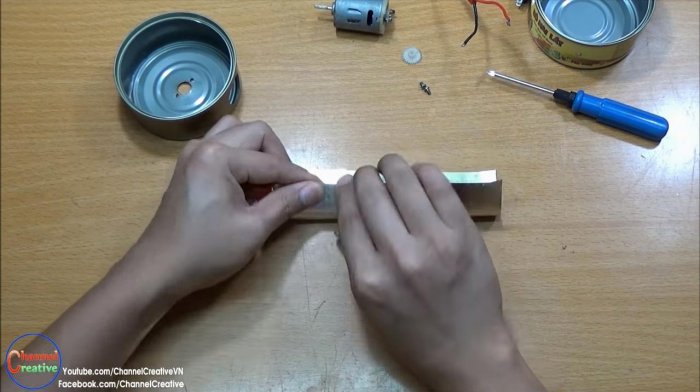

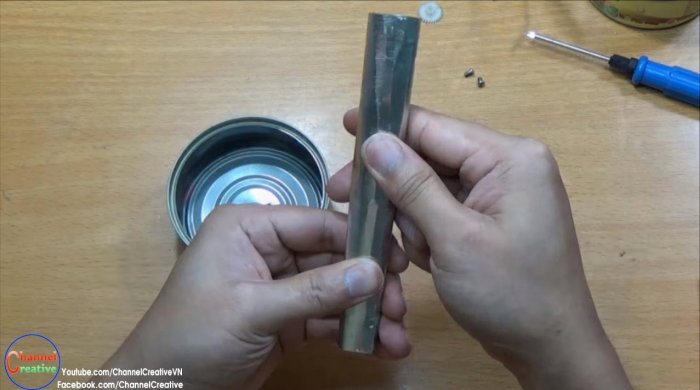

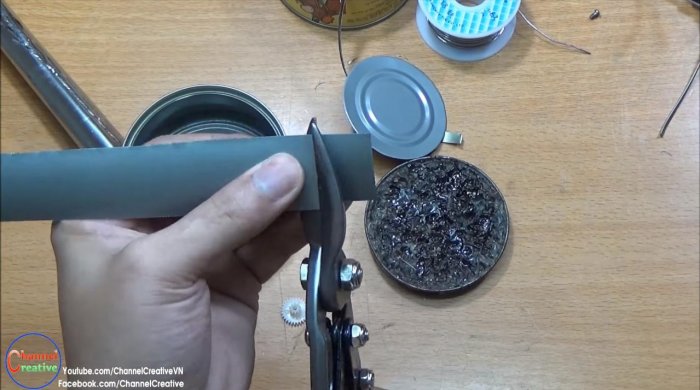

The guide tube is made from a high narrow jar. We cut the bottom and collar with metal scissors. Then we take any round rod, and we twist the tube of small thickness, with which we give the shape of a cone.
Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

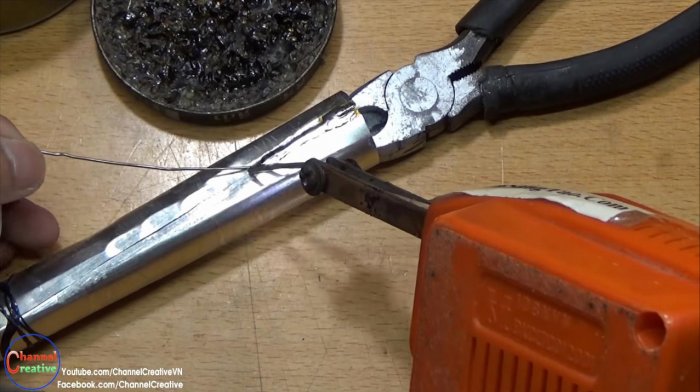

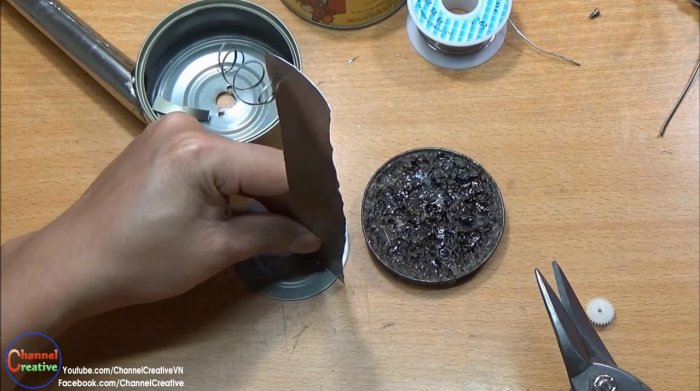

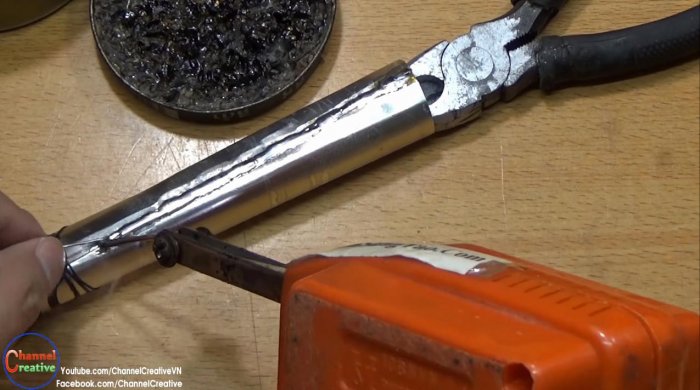

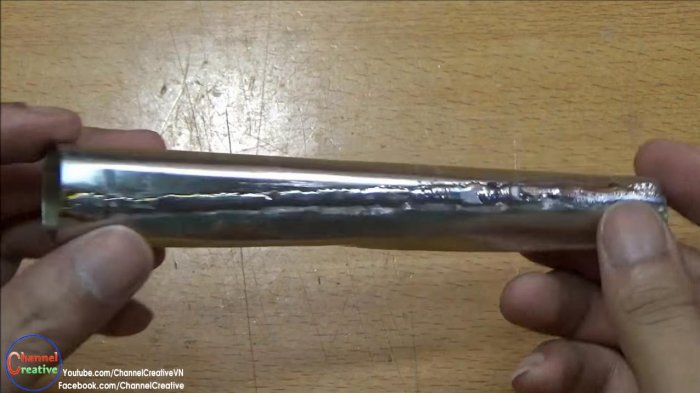

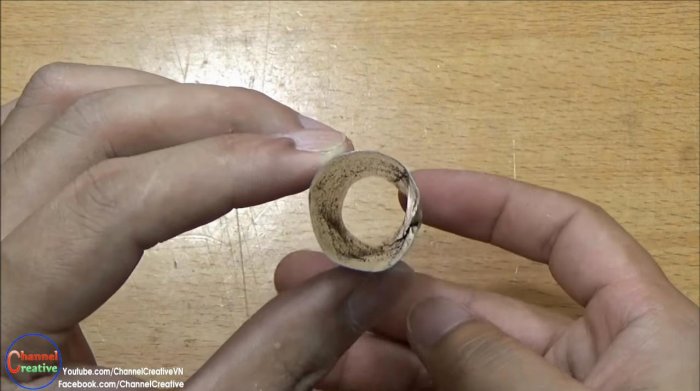

The joint of two edges of the sheet is cleaned with abrasive from amalgam.This needs to be done for a quality connection. To keep the tin shape, put on the edge of the tube rubber tie. We take a soldering iron, and with the help of a flux, we solder the entire joint.
Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

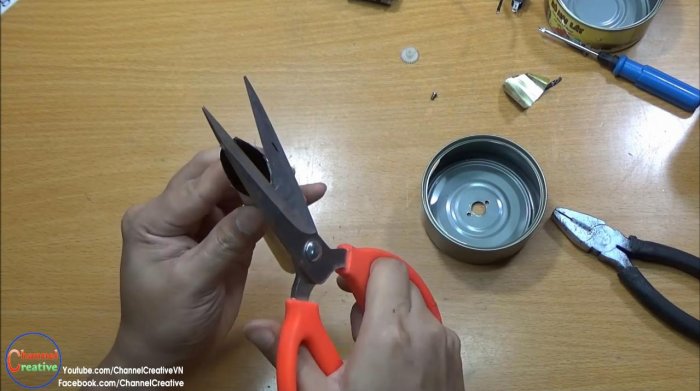

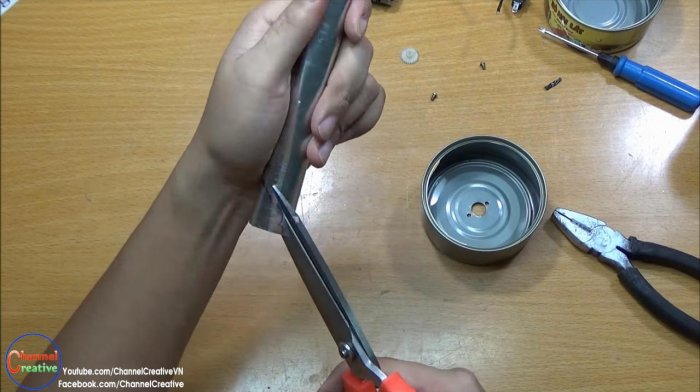

We mark the cut of the tube at the angle of the can, according to the type of the watering can. We cut the collar tube with scissors.
Tin can blower

Tin can blower

Tin can blower

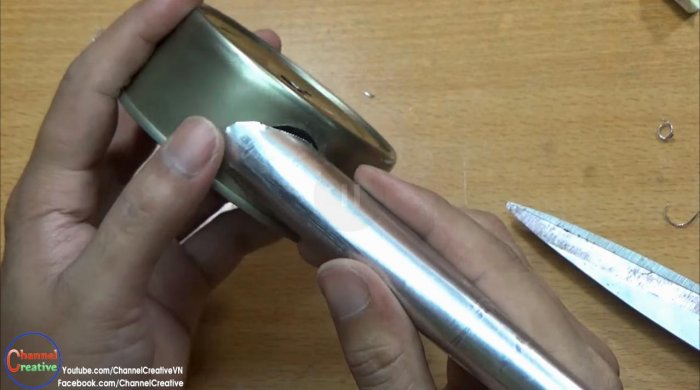

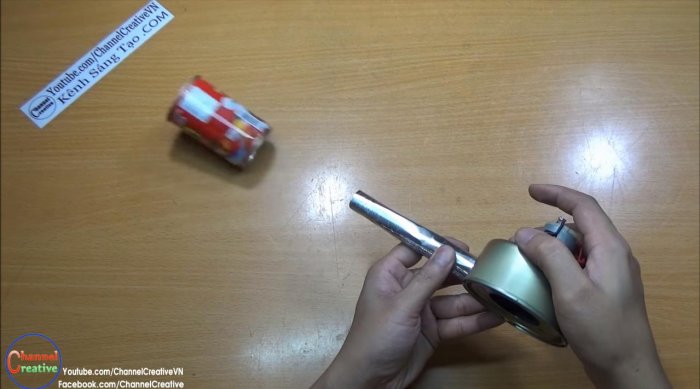

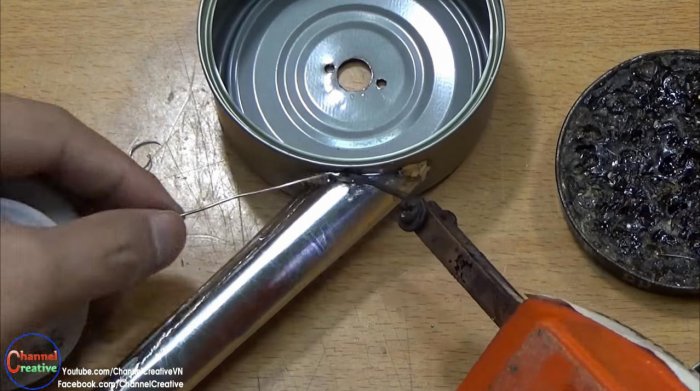

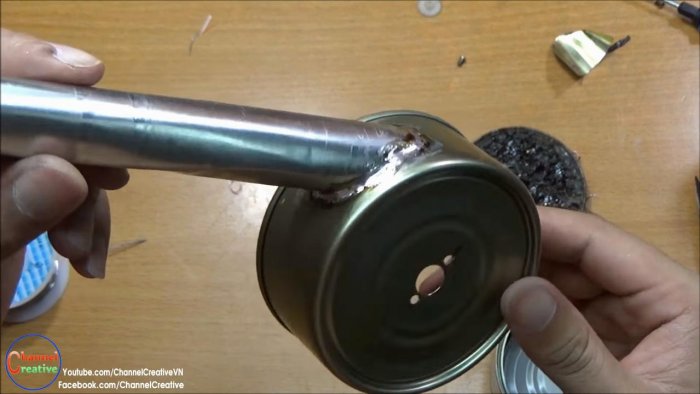

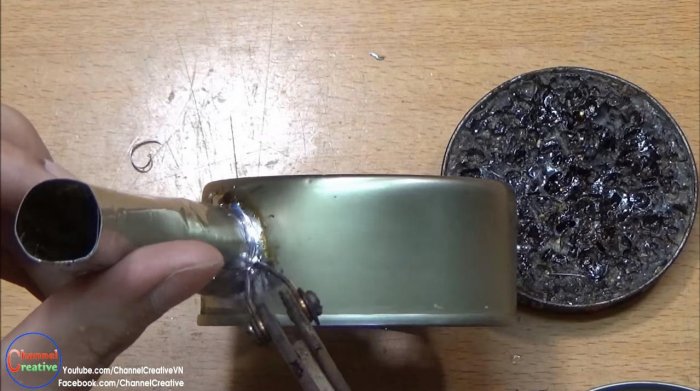

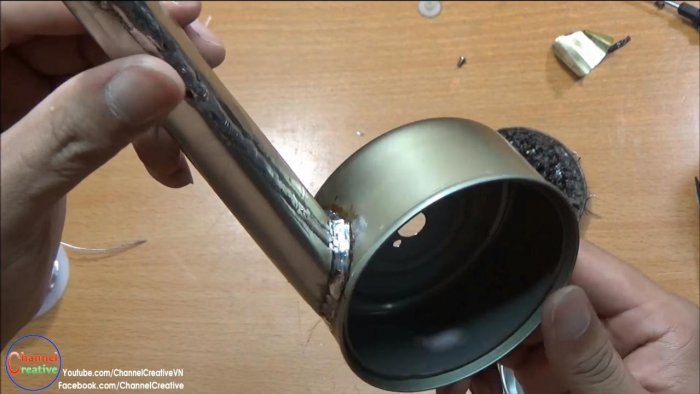

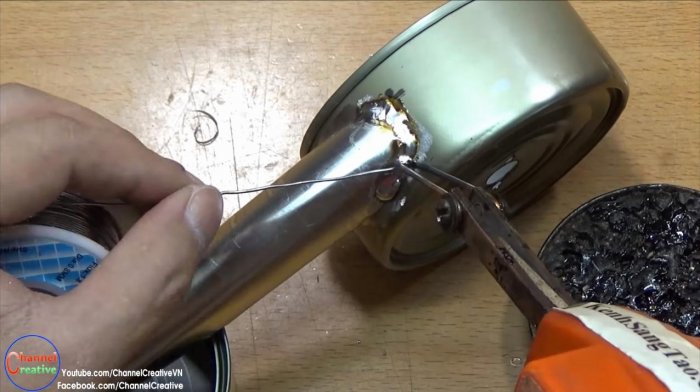

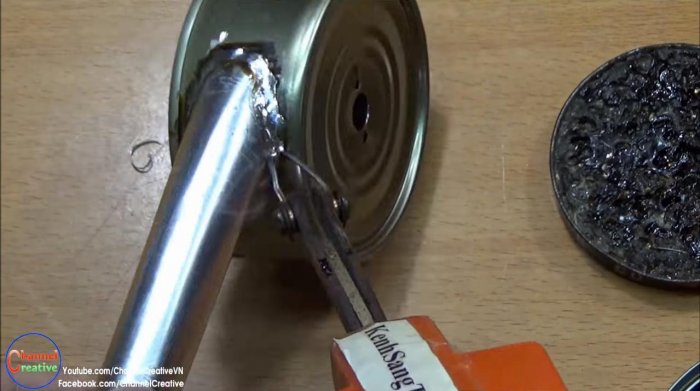

We attach the base of the tube to the hole in the jar, and solder it with a soldering iron. The solder needs to go through the entire gate so that the connection is reliable. Our body should have the following form (photo).
Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

Stage two - we make the impeller

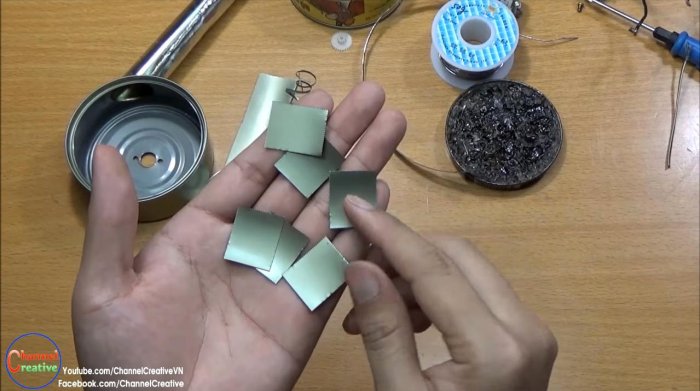

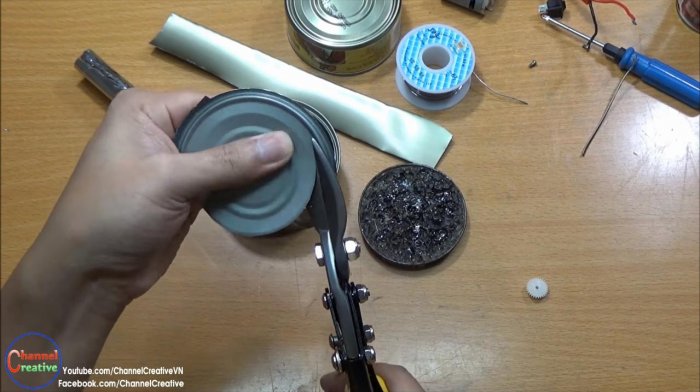

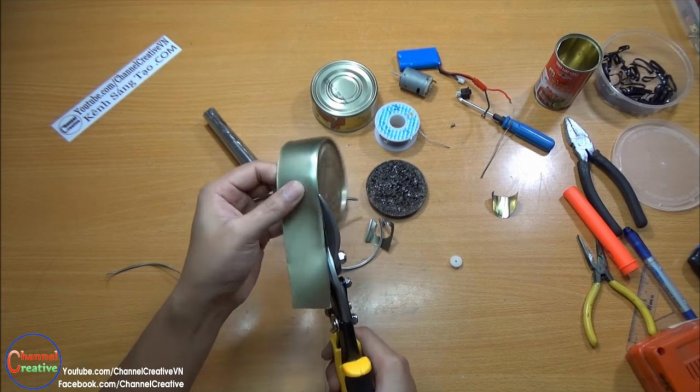

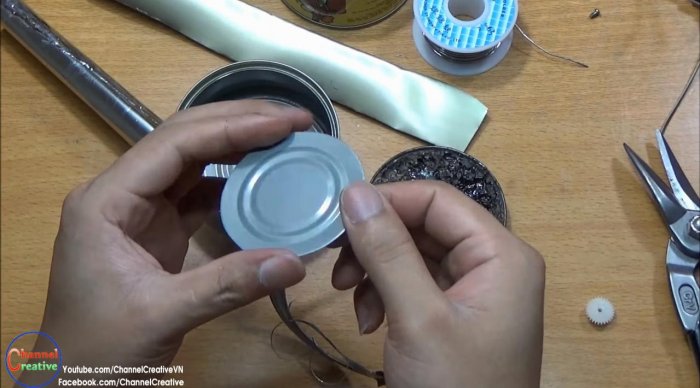

From the next wider smaller can, cut the bottom and side wall. From the received tape we cut six small petals.
Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

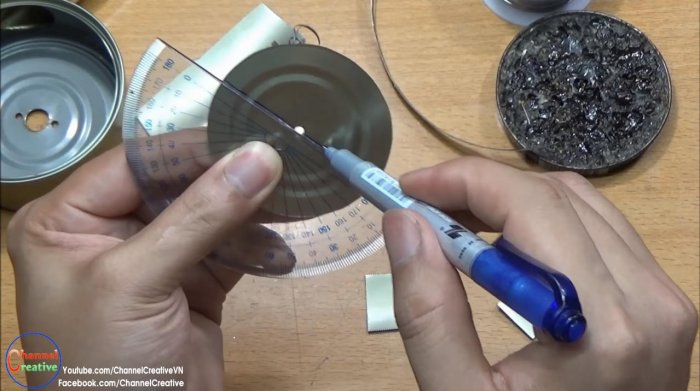

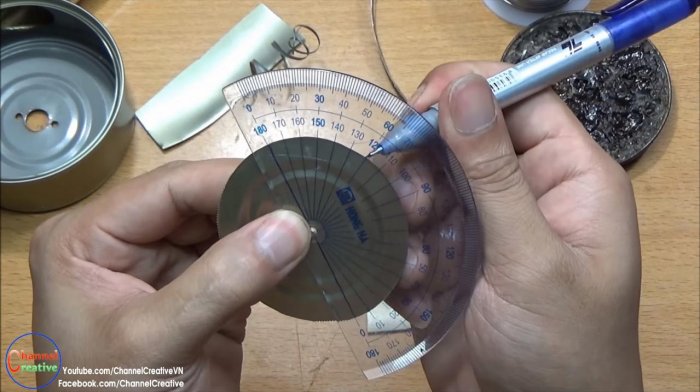

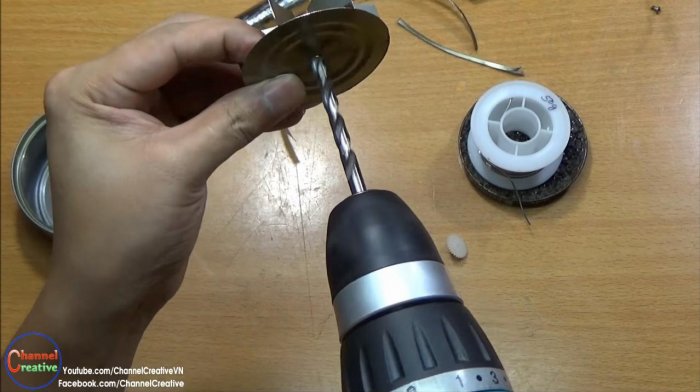

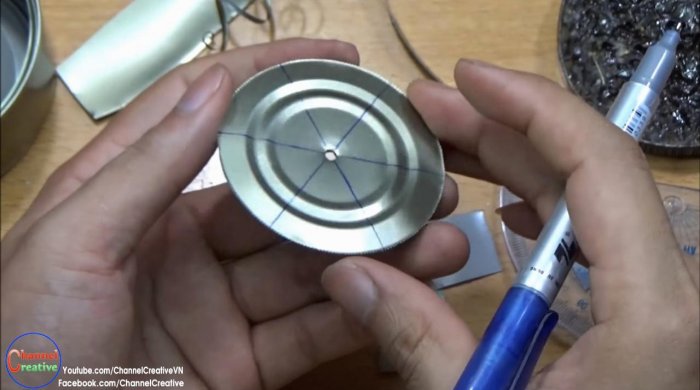

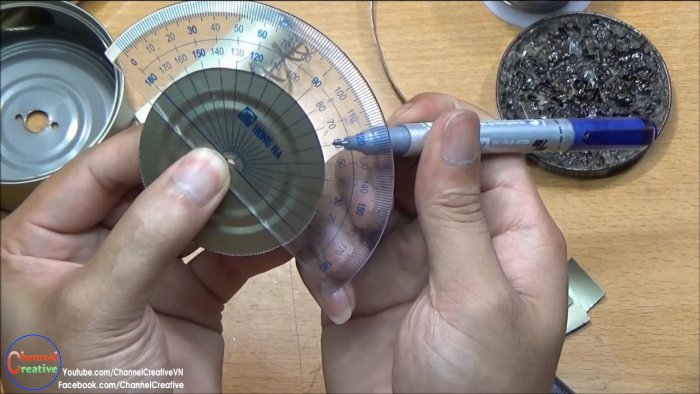

The bottom should freely fit into the body (large can), without touching its side walls. Make a hole in the center with a drill or an awl, and divide the circle into six equal parts. To do this, you can use the protractor, noting from the center line of 60 and 120 degrees.
Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

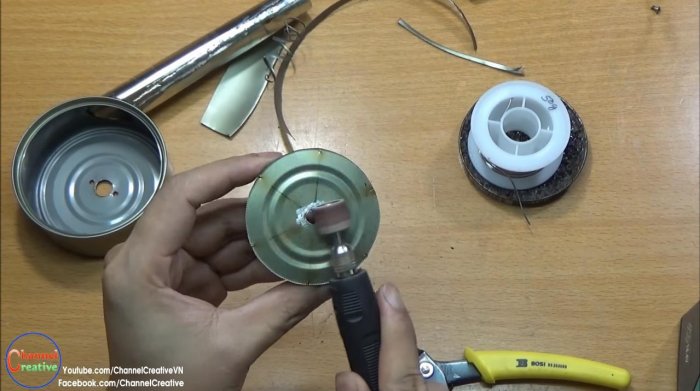

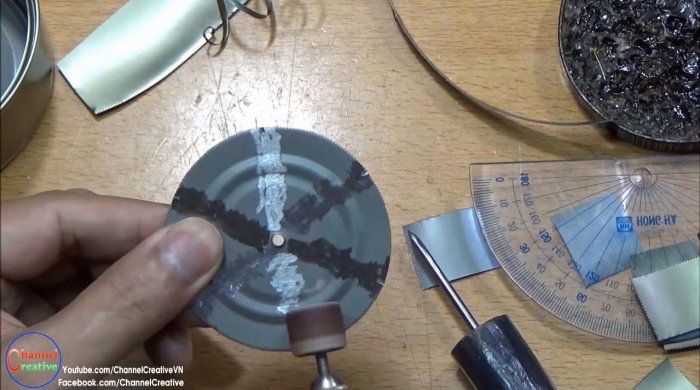

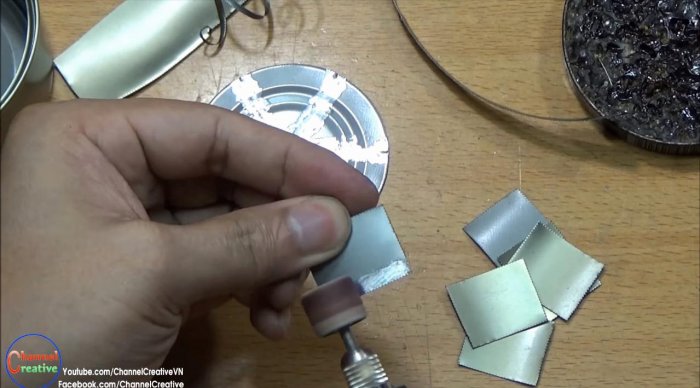

We mark the lines with notches with the help of metal scissors. We clean the marking with abrasive along the entire length of the solder. We also do it with petals.
Tin can blower

Tin can blower

Tin can blower

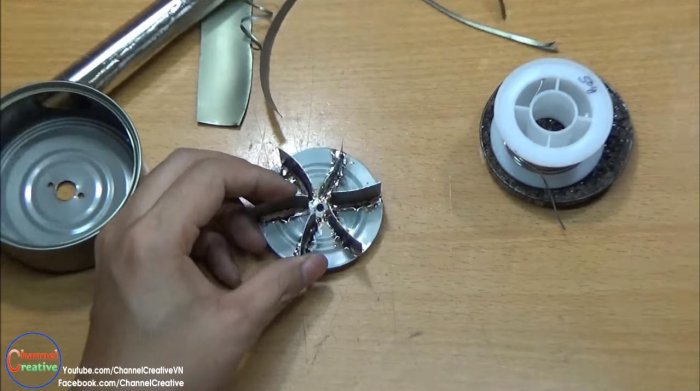

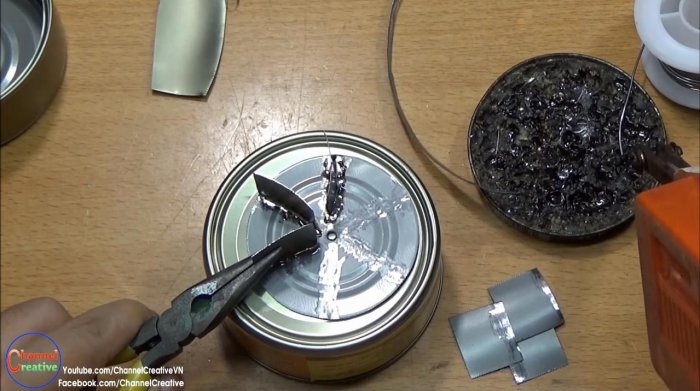

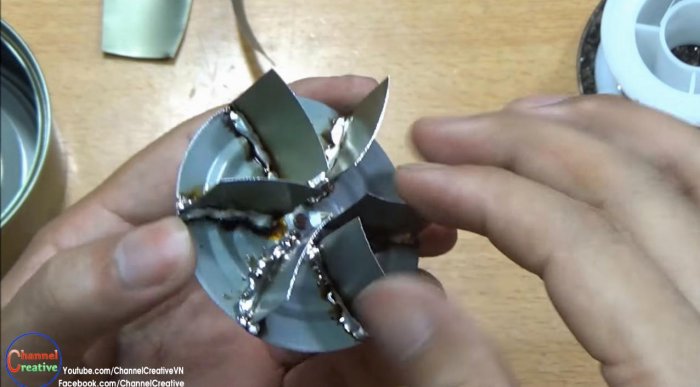

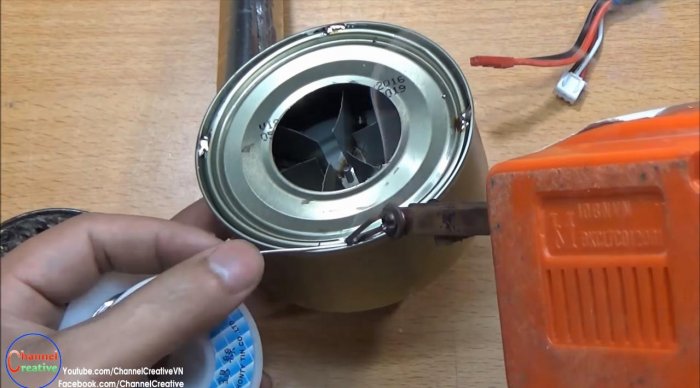

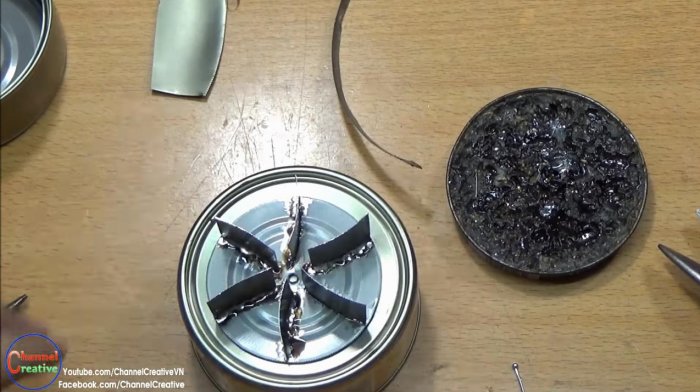

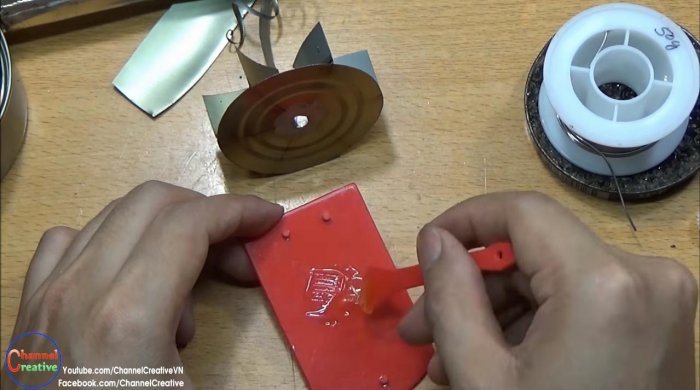

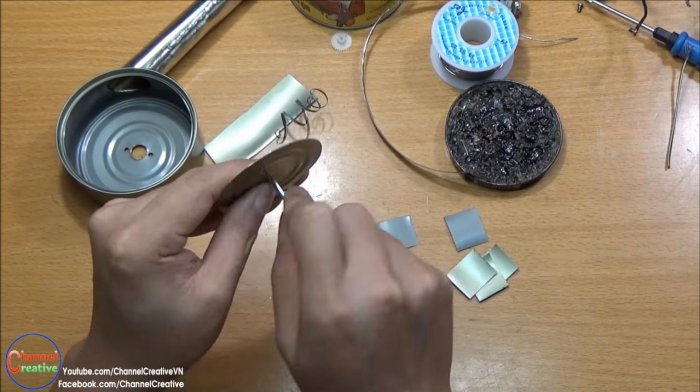

Slightly curving the petals arc, we expose them one by one, and solder to the lid with a soldering iron. The center of the impeller must remain intact.
Tin can blower

Tin can blower

Tin can blower

Tin can blower

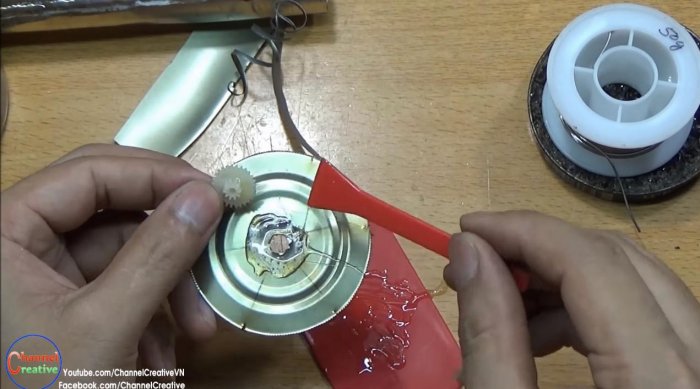

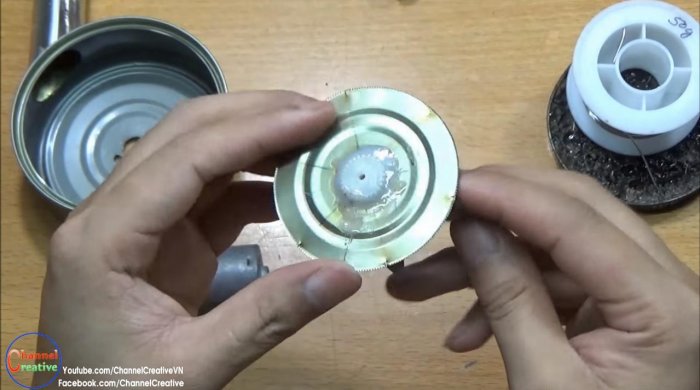

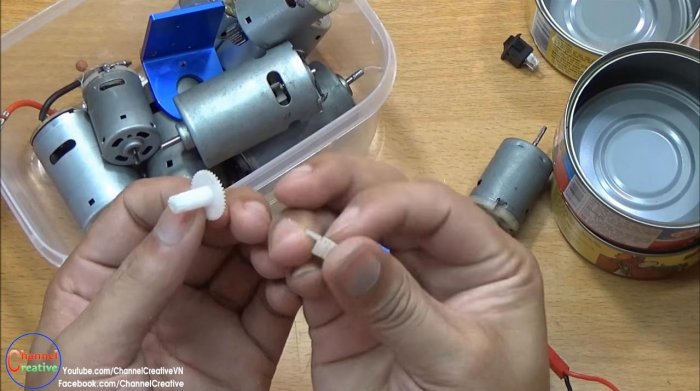

To transmit the torque from the engine to the impeller, use a plastic gear. For it, expand the hole with a suitable drill bit. Secure it with epoxy glue.
Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

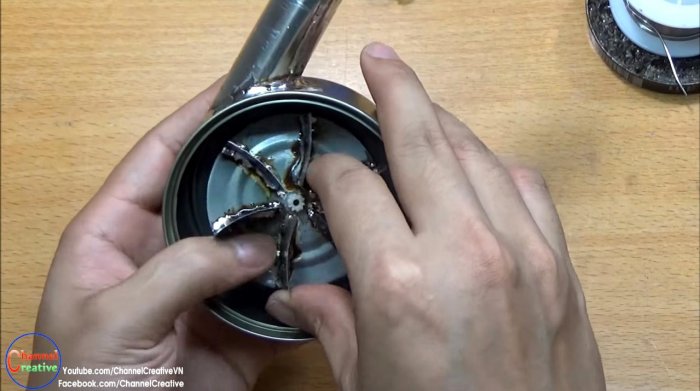

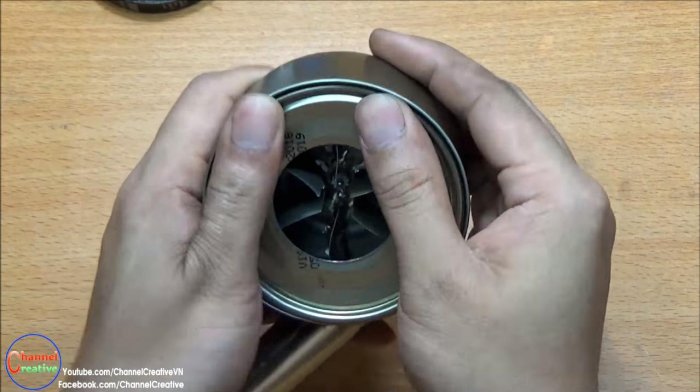

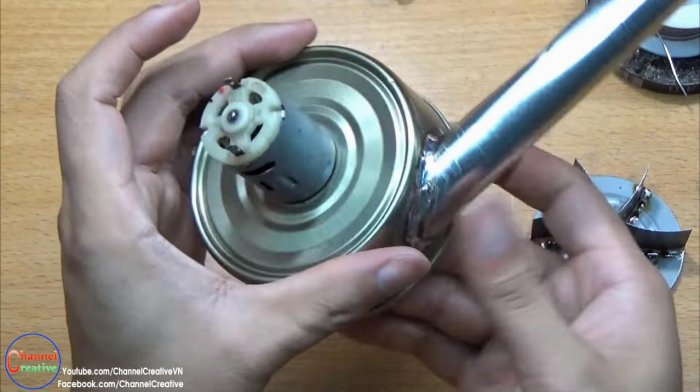

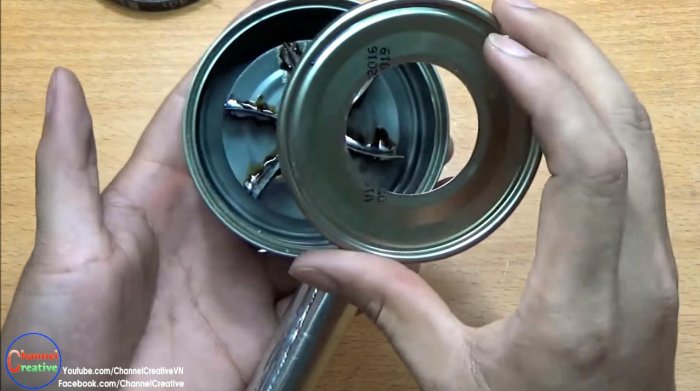

After drying epoxy we collect the main part of the device. We fix the engine to the screws, and then we attach the impeller.
Tin can blower

Tin can blower

Tin can blower

Stage Three - Outer cover and electrics

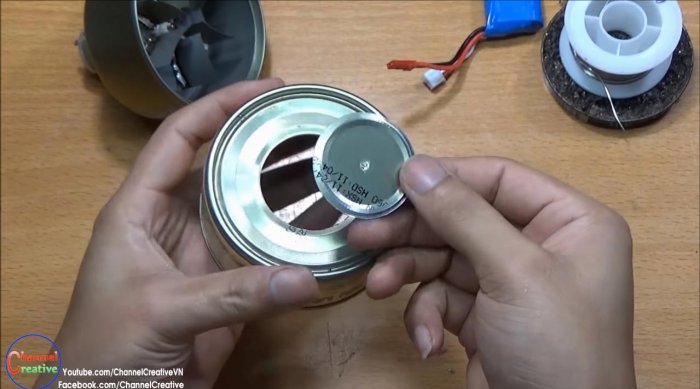

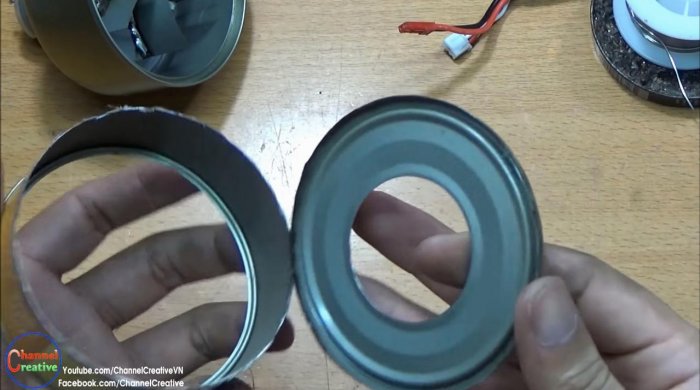

In the third wide bank, we select the middle in the bottom with a furniture mill. Crop the excess so that there is one lid, suitable as a stub for the case.
Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

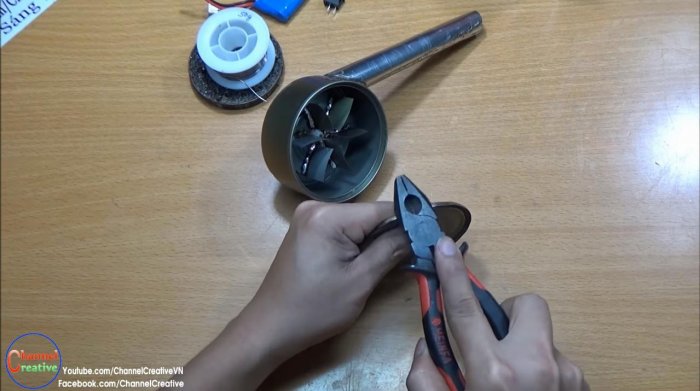

Bend the edges of the lid slightly with pliers, and insert it into place in the case. Fix the connection plugs for reliability in several places with a soldering iron.
Tin can blower

Tin can blower

Tin can blower

Tin can blower

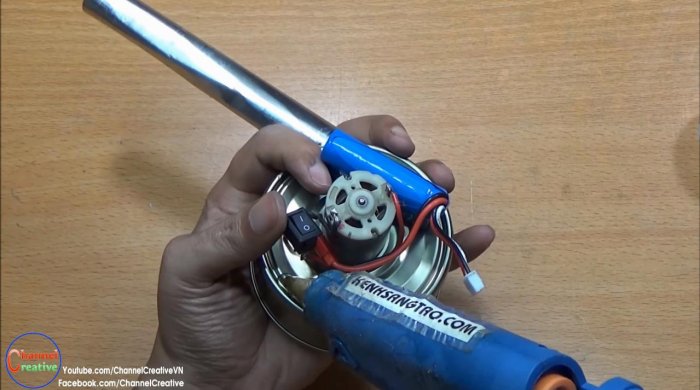

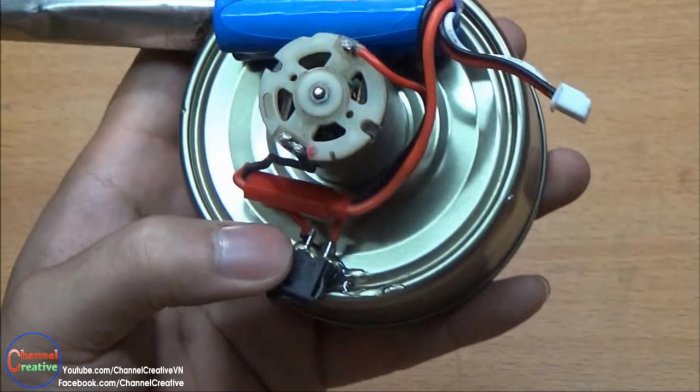

The electrical scheme of this homemade is simple. It involves a battery, which has two outgoing contacts for supplying electricity to the device (engine), and two incoming contacts for recharging. Solder to the engine two wires with a connector for battery contacts, and connect the two elements. Intermediate chain is a button. Push the button-switch to the side surface of the case, and glue it with hot glue.Also fasten and batteries.
Tin can blower

Tin can blower

Tin can blower

Tin can blower

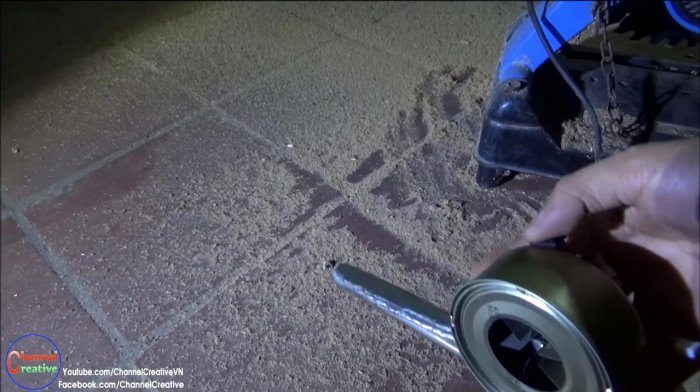

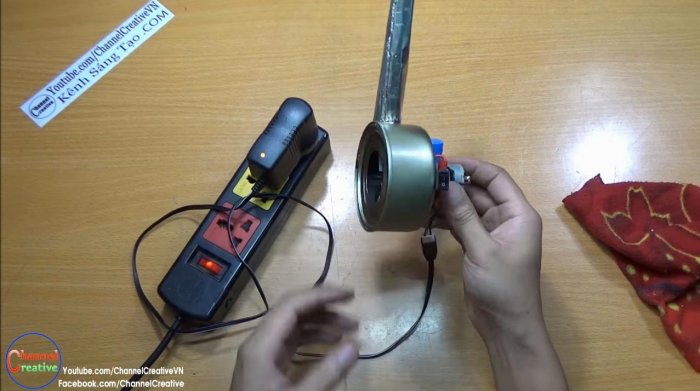

The device is ready, now charge the batteries through the adapter, and check it in action.
Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

Tin can blower

Conclusion

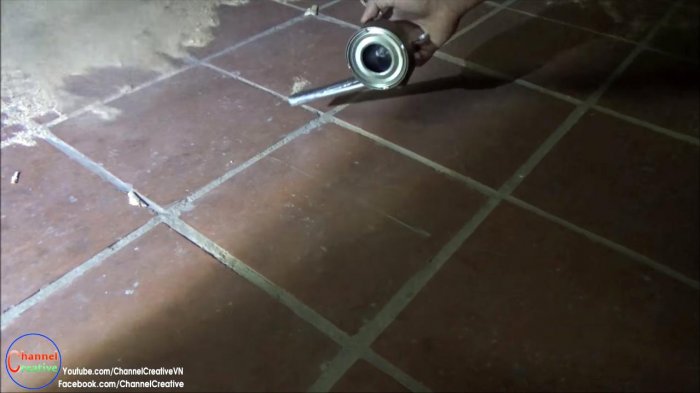

Such an unpretentious little thing is capable of blowing air quite powerfully, sweeping garbage from machines, a desktop or a surface necessary for work. Of course this is not a complete solution for cleaning the workshop, and sooner or later all unnecessary will have to be swept into the urn. But when it comes to saving time, and the compressor is busy, such a blower will be most welcome.
